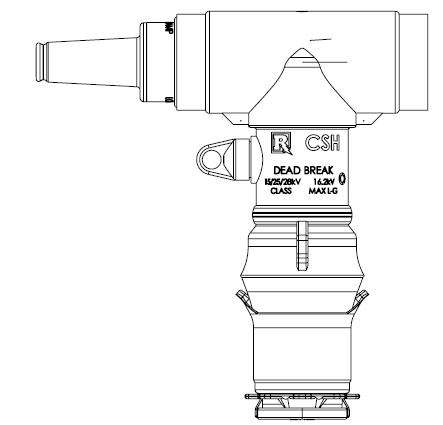

T1140-1 - Elbow Termination Kit, 600A 15kV Deadbreak
Revision 5
Mar 24, 2015
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| T1140 | Tag, Cable Number Plastic 1" Horiz Digits Elbow, Deadbreak Kit, 1/0-450 kcmil Al 600A 15kV Jckt Cable |
1 1 |
------- 5001641 |
| T1141 | Tag, Cable Number Plastic 1" Horiz Digits Elbow, Deadbreak Kit, 600-1250 kcmil Al 600A 15kV Jckt Cable |
1 1 |
------- 5001640 |
Notes:
- Both the lug and the termination included in the above kits are range taking to the sizes listed.
- Always refer to elbow manufacturers' enclosed installation instructions.
- An assembly tool (MID 5001642) is available from the tool room for assembling either of the above elbows. Core tools to aid with removing the coldshrink cores are available from the tool room under MID 5001643 for the 1/0-450 elbows and MID 5001644 for 600-1250 elbows. Hex impact sockets are also available from the tool room for the shearbolts on the lugs under MID5001645 for the 1/0-450 lug (6mm hex) and MID 5001646 for the 600-1250 lug (8mm hex).
- Refer to T&D Guidelines 4-10-20.0 and 4-24-22.1 for elbow bleed wire training instructions.
- Replacement Test Point Caps are available in the warehouse under MID 1001951.
- Elbow kits come complete with deadend caps for the integrated 200A Loadbreak Reducing Tap Plugs (LRTP). Replacement deadend caps are available in the warehouse under MID 761256.
