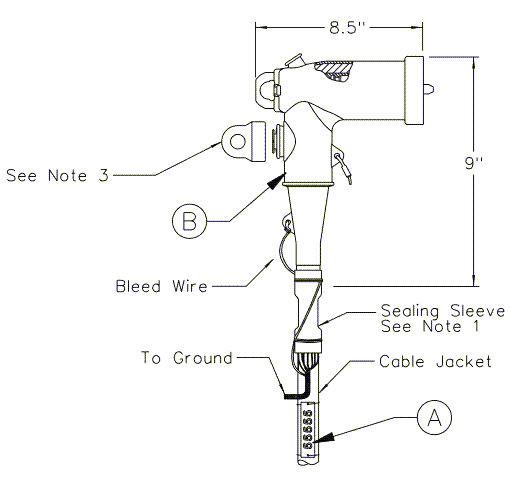

T1103-5 - Elbow Terminations, 200A 15kV Loadbreak
Revision 5
Oct 11, 2010
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1103 | A | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ |
| B | Elbow, Loadbreak Kit #2 Al/Cu 200A 15kV w/ Sealing Sleeve | 1 | 785347 | |
| T1105 | A | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ |
| B | Elbow, Loadbreak Kit 1/0 Al 200A 15kV w/ Sealing Sleeve | 1 | 785355 |
Notes:
- A jacketed cable sealing kit is packaged with each elbow. Refer to Compatible Unit T1130 if additional sealing kits are needed. If an elbow is to be installed on unjacketed cable return the unneeded sealing kit to the warehouse.
- Refer to T&D Guideline 4-10-20.0 and T&D Guideline 4-24-22.1 for elbow bleed wire training. Always refer to elbow manufacturers' enclosed instructions for cable cutback dimensions and elbow installation directions.
- Replacement Test Point Caps are available in the warehouse, Cat ID 1001951.
