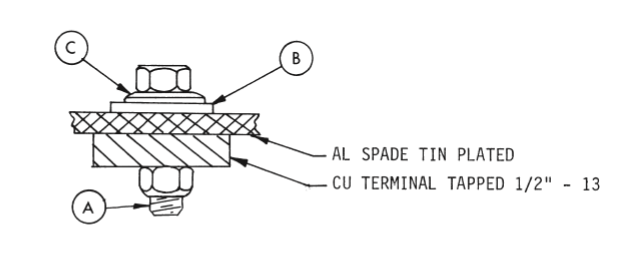

T0980 - Bolt Assembly for Al Spade to Tapped Cu Lug
Revision 3
Nov 16, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T0980 | A | Bolt, Machine, SS 1/2" x 1-1/2" w/ Bronze Hex Nut | 1 | 103341 |
| B | Washer, Flat, Rd SS 1/2" | 1 | 191627 | |
| C | Washer, Belleville, Spring SS 1/2" | 1 | 191635 |
Note:
- Specify one bolt assembly for each terminal lug mounting hole.
