T0801-7 - Compression Terminal Lugs for Bolted UG Secondary Terminal Blocks
Revision 7
Mar 8, 2012

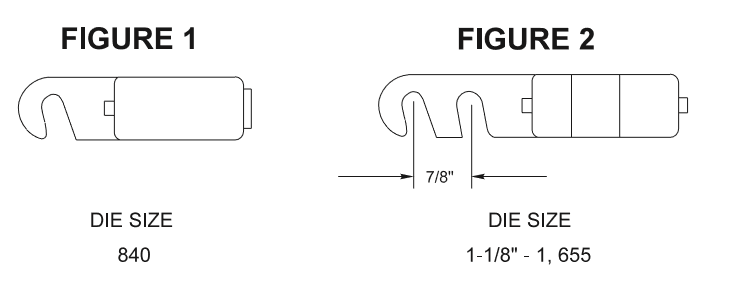

| Compatible Unit | Fig. | Description | Color Code | Qty | MID |
|---|---|---|---|---|---|
| T0801 | 1 | #2 Str. Al/Cu | Red | 1 | 786098 |
| T0802 | 1 | 1/0 Str. Al/Cu | Yellow | 1 | 786113 |
| T0803 | 1 | 2/0 Str. Al | Grey | 1 | 786121 |
| T0835 | 1 | 3/0 Str. Al | Black | 1 | 786139 |
| T0804 | 1 | 4/0 Str. Al | Pink | 1 | 786147 |
| T0805 | 2 | 250 kcmil Str. Al | Green | 1 | 786155 |
| T0806 | 2 | 350 kcmil Str. Al | Brown | 1 | 786163 |
| T0807 | 2 | 400-500 kcmil Str. Al | Aqua | 1 | 786189 |
Notes:
- The terminal lugs listed above are used to connect underground secondary and service cables to bolted type submersible terminal blocks (squids). Bolted type terminal blocks were formerly the District's standard. Consequently, the terminal lugs are for maintenance of existing installations or for connecting new cables to existing bolted type terminal blocks.
- One insulating sleeve should be specified with each terminal lug (refer to Compatible Units I0340 & I0341).
