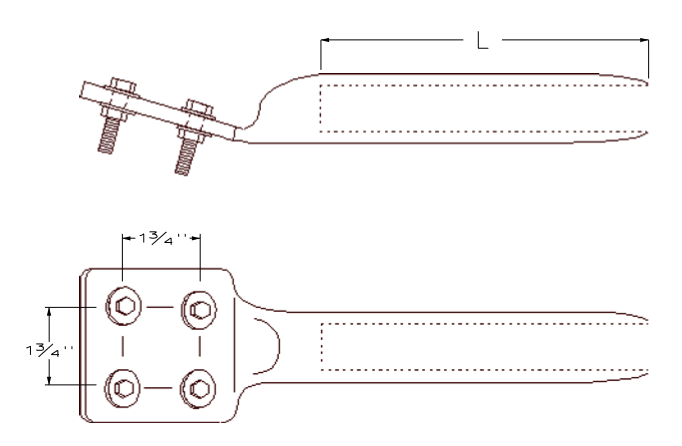

T0718-9 - Overhead Compression Terminals, 15° Captive Bolt
Revision 3
Mar 8, 2012
| Compatible Unit | Description | Size | L | Die | Qty | MID |
|---|---|---|---|---|---|---|
| T0718 | Terminal, Comp Captive Bolt 15° | 795 AAC | 5.75" | 30 AH | 1 | 503814 |
| T0719 | Terminal, Comp Captive Bolt 15° | 1272 AAC | 6.5" | 34 AH | 1 | 803822 |
Note:
- Pad holes are tapped 1/2" 13 UNC
