T0710-5 - Overhead Compression Terminals, Slotted and Captive Bolt
Revision 6
May 9, 2019

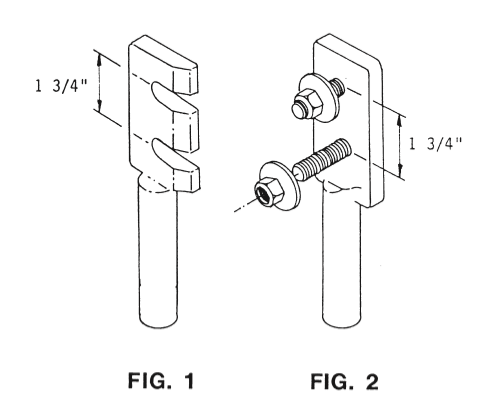

| Compatible Unit | Fig | Description | Size | Qty | MID |
|---|---|---|---|---|---|
| T0710 | 1 | Terminal, Comp. Slotted | 336.4 kcmil AAC | 1 | 215534 |
| T0711 | 2 | Terminal, Comp. Captive Bolt | 336.4 kcmil AAC | 1 | 215633 |
| T0712 | 1 | Terminal, Comp. Slotted | 795 kcmil AAC | 1 | 215550 |
| T0713 | 2 | Terminal, Comp. Captive Bolt | 795 kcmil AAC | 1 | 215641 |
| T0714 | 2 | Terminal, Comp. Captive Bolt | 4/0 kcmil STR | 1 | 5000730 |
| T0715 | 1 | Terminal, Comp. Slotted | 4/0 kcmil STR | 1 | 5001722 |
