T0601-17 - Compression Deadends
Revision 5
Aug 4, 2016
| Compatible Unit | Description | Die | Qty | MID |
|---|---|---|---|---|

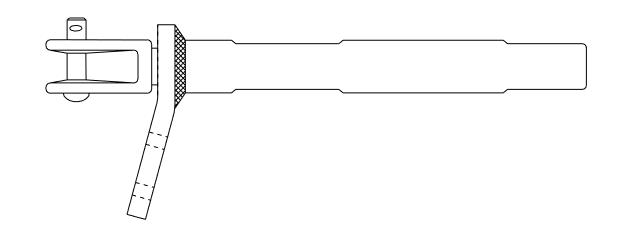

| T0601 | Deadend, Comp Sgl Tongue 336.4 kcmil ACSR | 08 CD | 1 | 930207 |
| T0603 | Deadend, Comp Sgl Tongue 336.4 kcmil AAC | 07 CD | 1 | 930158 |
| Compatible Unit | Description | Die | Qty | MID |
|---|---|---|---|---|
| T0602 | Deadend, Comp Sgl Tongue 795 kcmil ACSR | 12 CD | 1 | 930223 |
| T0604 | Deadend, Comp Sgl Tongue 795 kcmil AAC | 11 CD | 1 | 930182 |
| T0605 | Deadend, Comp Sgl Tongue 1272 kcmil AAC | 14 CD | 1 | 930265 |
Notes:
- 336.4 kcmil deadends are equipped with 2-hole terminal pads. All other deadends are equipped with 4-hole terminal pads.
- Each compression deadend is equipped with an integral clevis or eye and is prefilled with oxide inhibitor.
| Compatible Unit | Description | Die | Qty | MID |
|---|---|---|---|---|

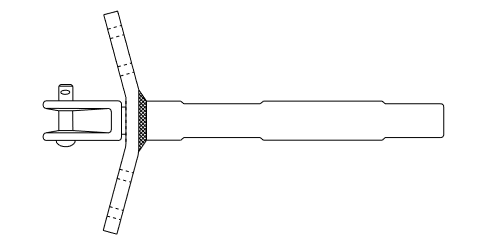

| T0614 | Deadend, Comp Dbl Tongue 336.4 kcmil AAC | 07 CD | 1 | 931156 |
| Compatible Unit | Description | Die | Qty | MID |
|---|---|---|---|---|
| T0615 | Deadend, Comp Dbl Tongue 795 kcmil ACSR | 12 CD | 1 | 930231 |
| T0616 | Deadend, Comp Dbl Tongue 795 kcmil AAC | 11 CD | 1 | 930190 |
| T0617 | Deadend, Comp Dbl Tongue 1272 kcmil AAC | 14 CD | 1 | 930257 |
Notes:
- 336.4 kcmil deadends are equipped with 2-hole terminal pads. All other deadends are equipped with 4-hole terminal pads.
- Each compression deadend is equipped with an integral clevis or eye and is prefilled with oxide inhibitor.
