S0401-8 - 15kV Heat shrinkable Insulating Materials for Substation Applications
Revision 3
Mar 8, 2012

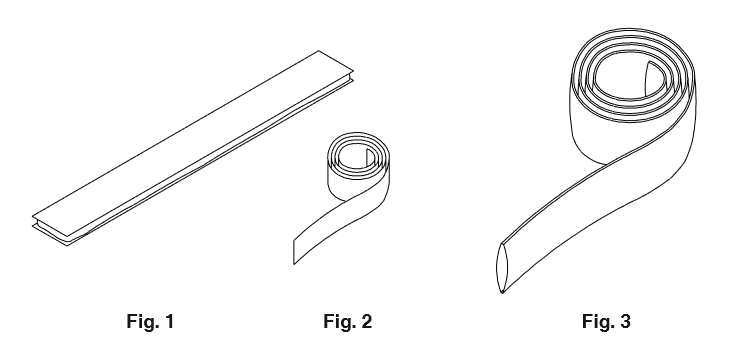

| Compatible Unit | Fig. | Description | Qty | MID |
|---|---|---|---|---|
| S0401 | 1 | Sealant, Strip Heat-Activated 2"W x 15"L | 1 EA. | 104703 |
| S0403 | 2 | Tape, Heat shrinkable Insulating 15kV Bus Bar 2"W x 25' Long Roll | 1 RO. | 104753 |
| S0407 | 3 | Tubing, Heat shrinkable Insulating 15kV 4" Rectangular Bus Bar | 1 FT. | 104670 |
| S0408 | 3 | Tubing, Heat shrinkable Insulating 15kV 6" Rectangular Bus Bar | 1 FT. | 104688 |
Notes:
- Sealant is track resistant for environmentally sealing each end of a high voltage bus being insulated with heatshrinkable tape or tubing.
- Heat shrinkable tape is for use on straight or bent bus bars where tubing cannot be used, or to insulate unusual connections or geometries. Wrap using a two-thirds overlap.
- Heat shrinkable tubing is for use on straight or bent bus bars where at least one end is accessible. Bolted connections require two layers of tubing.
- Allowable thickness range for rectangular bus is 1/4" - 5/8" when insulating with heatshrinkable tubing.
