S0260-2 - Copper Bus Threaded Stud Connector to IPS Pipe
Revision 2
Mar 7, 2012

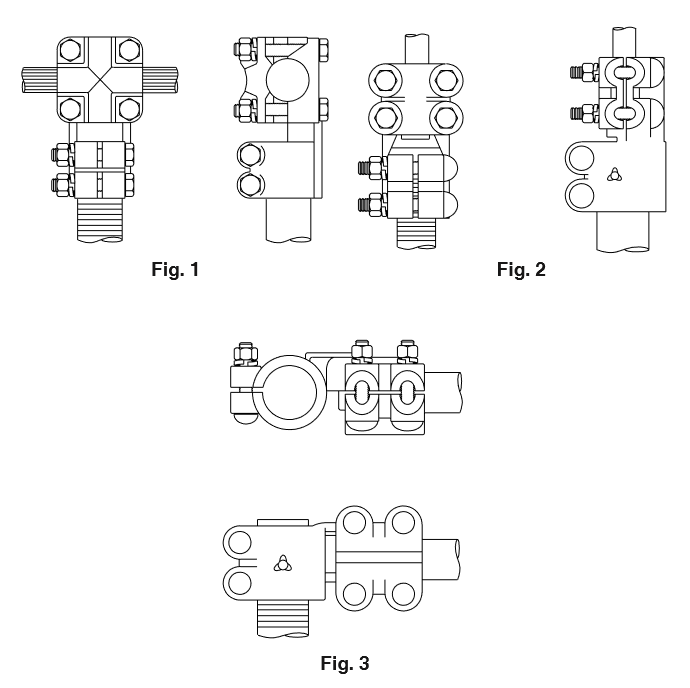

| Compatible Unit | Fig. | Description | Qty | MID |
|---|---|---|---|---|
| S0260 | 1 | Stud Connector (2" - 12) to 3/8" 1 1/4" IPS Cu or #4/0 - 2000 Cu Cable, Cu Alloy | 1 | 100181 |
| S0261 | 2 | Stud Connector (2" - 12) to 2" IPS Cu, Cu Alloy | 1 | 101121 |
| S0262 | 3 | Stud Connector (2" - 12), 90° to 2" IPS Cu, Cu Alloy | 1 | 101303 |
