S0256-8 - Substation Compression Terminals
Revision 3
Mar 6, 2012

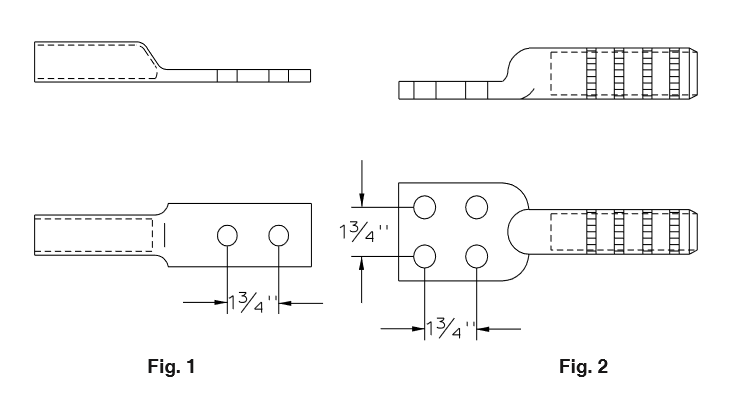

| Compatible Unit | Fig. | Description | Die Size | Qty | MID |
|---|---|---|---|---|---|
| S0256 | 1 | 4/0 AL-CU | Blackburn 840 | 1 | 101569 |
| S0257 | 2 | 795 kcmil AAC | Alcoa 24AH | 1 | 101577 |
| S0258 | 2 | 1272 kcmil AAC | Alcoa 34AH | 1 | 101535 |
Notes:
- All of the above are straight type compression terminals.
- Terminal S0256 is also suitable for use in some underground distribution cable termination applications, e.g., padmounted transformer secondary lead terminations.
