S0180-2 - Aluminum Conductor Bolted Terminations
Revision 3
Mar 6, 2012

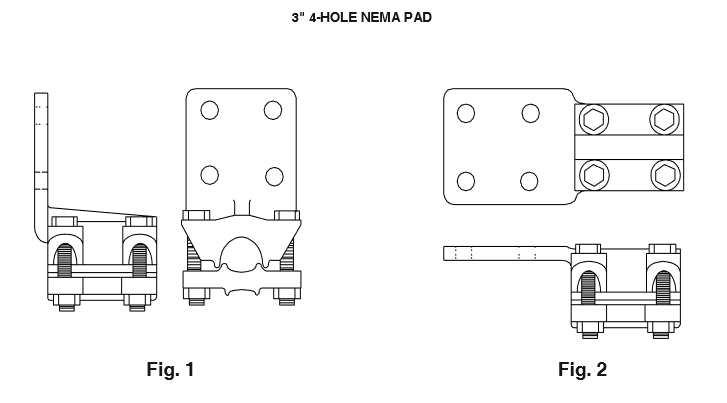

| Compatible Unit | Fig. | Description | Qty | MID |
|---|---|---|---|---|
| S0180 | 1 | Terminal, Bolted 300 - 795 kcmil Al to 90° 4-Hole Flat | 1 | 101501 |
| S0181 | 1 | Terminal, Bolted 636 - 1272 kcmil Al to 90° 4-Hole Flat | 1 | 101519 |
| S0182 | 2 | Terminal, Bolted 4/0 - 336.4 kcmil Al to 4-Hole Flat | 1 | 101486 |
