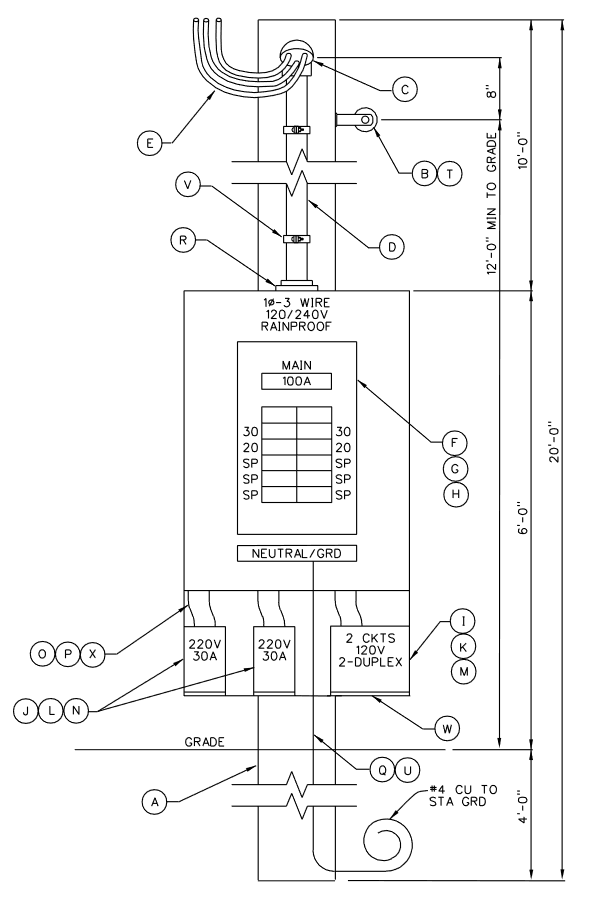

S0504 - Alternate AC Service
Revision 4
Apr 5, 2017
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| S0504 | A | Pole, 6" x 6" x 20', Pressure Treated | 1 | 1001029 |
| B | Insulator, Deadend House Bracket | 1 | 935538 | |
| C | Weatherhead, 1-1/4" | 1 | 1001018 | |
| D | Conduit, Rigid Galv Stl 1-1/4" x 10' | 10' | 1001019 | |
| E | Wire, #2 Cu 19 Str THHN/THWN Black 600V | 45' | 845810 | |
| F | Panelboard, 120/240V w/ 100A Main Breaker | 1 | 1001017 | |
| G | Circuit Breaker, 30A, 2-Pole, Stab-On | 2 | 1001020 | |
| H | Circuit Breaker, 20A, 1-Pole, Stab-On | 2 | 310037 | |
| I | Box, Weatherproof, 2-Gang | 1 | 1001021 | |
| J | Box, Weatherproof, 1-Gang | 2 | 1001022 | |
| K | Outlet, Cover, Weatherproof, 2-Gang Duplex | 1 | 1001023 | |
| L | Outlet, Cover, Weatherproof, 1-Gang, 30A | 2 | 1001024 | |
| M | Outlet, Receptacle, Duplex, 120V, 20A | 2 | 1001025 | |
| N | Outlet, Receptacle, Twist-Lock 125/250V, 30A, 4W, 3P | 2 | 1001026 | |
| O | Nipple, Offset, 3/4" | 3 | 1001027 | |
| P | Locknut, 3/4" | 3 | 109018 | |
| Q | Wire, #4 Cu Bare SD Sol | 10' | 848476 | |
| R | Hub, 1-1/4", 2-Bolt | 1 | 1001028 | |
| S | Screw, Lag, Galv 3/8" x 3" | 6 | 163692 | |
| T | Screw, Lag, Galv 5/16" x 2" | 2 | 1001052 | |
| U | Staple, Galv 1-1/2" | 6 | 139114 | |
| V | Clamp, Conduit Hanger, Rigid 1-1/4" Galv Stl w/ Hardware | 2 | 1001732 | |
| W | Plate, Aluminum, 3/16" x 6" x 14" | 1 | 1001030 | |
| X | Bushing, 3/4" Plastic | 3 | 108044 |
