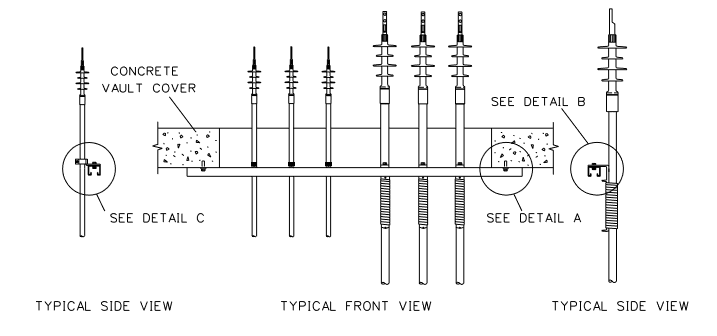

R0175-8 - Vertical Support of Cables Entering Switch Cabinets
Revision 2
Apr 18, 2018

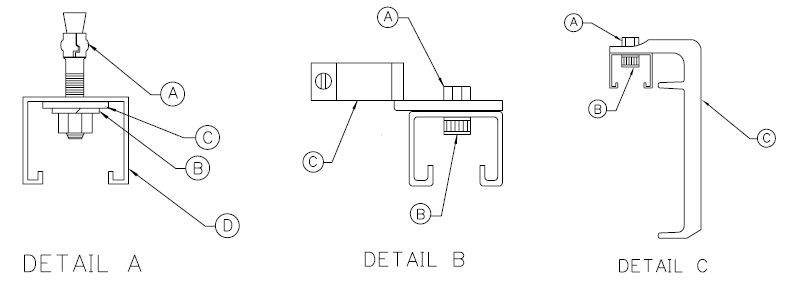

| Compatible Unit | Detail | Item | Description | Qty | MID |
|---|---|---|---|---|---|
| R0175 | A | A | Bolt, Anchor Masonry 3/8" x 2-1/4" | 2 | 112045 |
| B | Washer, Galv Split Lock 7/16” Hole | 2 | 196429 | ||
| C | Washer, Galv Rd 1" Flat 7/16” Hole | 2 | 196495 | ||
| D | Channel, Galv Unistrut 1-5/8" | 6' | 761024 | ||
| R0177 | B | A | Nut, Silicon Bronze Hex 1/2"-13 UNC 2A | 1 | 141200 |
| B | Bolt, SS Hex Socket Head 1/2" x 1" | 1 | 761016 | ||
| C | Bracket, Cable Support 0.80" - 1.25" OD | 1 | 1002651 | ||
| R0178 | C | A | Nut, Silicon Bronze Hex 1/2"-13 UNC 2A | 1 | 141200 |
| B | Bolt, SS Hex Socket Head 1/2" x 1" | 1 | 761016 | ||
| C | Bracket, Cable Support w/ Poly Tie | 1 | 761149 |
Note:
- Use Compatible Unit R0177 with the clamp style support for #2 and 1/0 URD cables. Use Compatible Unit R0178 with the poly tie support for 350 & 1000 kcmil power cables.
- Refer to MID 5001192 for replacement poly ties.
