R1301-3 - Pole Eye Plates
Revision 1
Aug 16, 2016

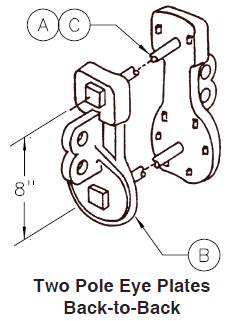

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1301 | A | Bolt, Machine 3/4” x 20” | 2 | 124636 |
| B | Plate, Pole Eye | 2 | 896970 | |
| C | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 |
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1303 | A | Bolt, Machine 7/8” x 20” | 2 | 124785 |
| B | Washer, Cast Sq 4” Curved 15/16” Hole | 2 | 910035 | |
| C | Washer, Galv Double Coil Spring Lock 7/8” | 2 | 1002132 | |
| D | Plate, Pole Double Offset Eye | 1 | 1001840 |
Note:
- Compatible Units R1301 & R1303 will support two 1/2" EHS guy wires at their maximum NESC design tension of 24,210 lb per wire (90% of 26,900 lb UTS).
