R1200 - Push Brace Connector

Revision 3
Feb 29, 2012

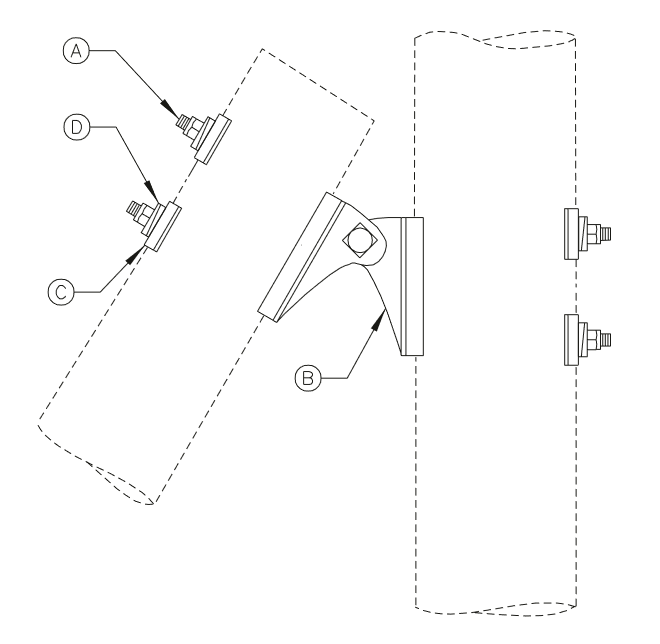

Compatible Unit Item Description Qty MID
R1200 A Bolt, Machine 3/4" x 12" 4 124587
  B Connector, Push Brace 1 884602
  C Washer, Cast Sq 4" Curved 15/16" Hole 4 910035
  D Washer, Galv Double Coil Spring Lock 5/8" Bolt 4 1001443

Notes:

  1. A push brace is to be used only if standard guying methods are impractical.
  2. Refer to T&D Guideline 4-5-14.0 for push brace installation details.
