R0801-2 - Support Timbers
Revision 4
Mar 1, 2012
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R0801 | A | Bolt, Machine 5/8" x 20" | 2 | 124248 |
| B | Gain, Crossarm Spiked #3 | 2 | 896839 | |
| C | Timber, Treated 4" x 6" x 15' | 1 | 906539 | |
| D | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| E | Washer, Galv Sq 2" Flat 11/16" Hole | 2 | 910267 | |
| F | Washer, Galv Double Coil Spring Lock 5/8" Bolt | 2 | 1001443 |

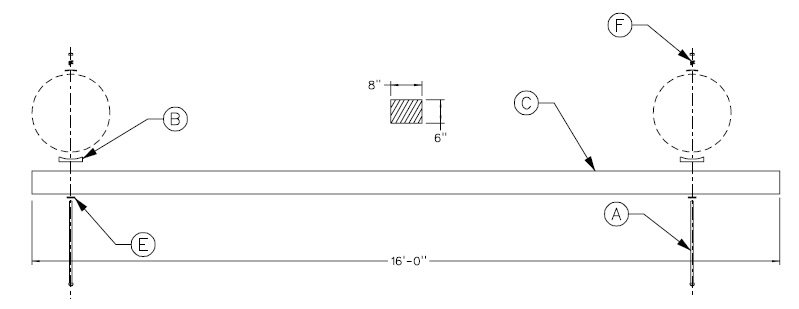

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R0802 | A | Bolt, Machine 5/8" x 22" | 2 | 124256 |
| B | Gain, Crossarm Spiked #3 | 2 | 896839 | |
| C | Timber, Treated 6" x 8" x 16' | 1 | 906547 | |
| D | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| E | Washer, Galv Sq 2" Flat 11/16" Hole | 2 | 910267 | |
| F | Washer, Galv Double Coil Spring Lock 5/8" Bolt | 2 | 1001443 |
