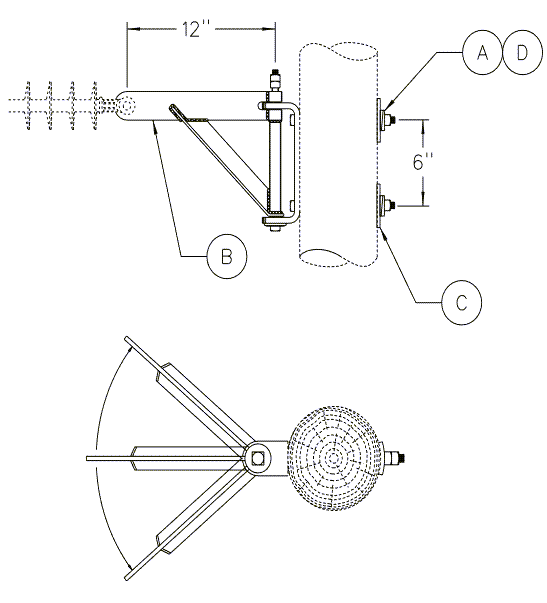

R0510 - Swinging Angle Bracket
Revision 2
Apr 1, 2016
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| R0510 | A | Bolt, Machine 3/4" x 14" | 2 | 124595 |
| B | Bracket, Swinging Angle | 1 | 877152 | |
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” Bolt | 2 | 1001445 |
