R1105-8 - Eye Nuts
Revision 4
Jun 20, 2006

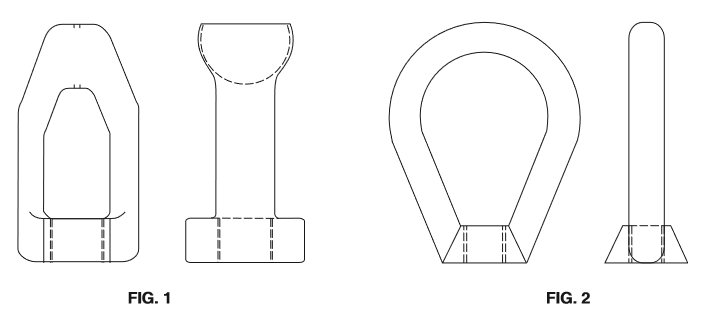

| Compatible Unit | Fig. | Description | Qty | MID |
|---|---|---|---|---|
| R1105 | 1 | Nut, Thimble Eye 5/8” Bolt | 1 | 893570 |
| R1106 | 1 | Nut, Thimble Eye 3/4” Bolt | 1 | 893588 |
| R1107 | 2 | Nut, Eye 5/8” Bolt | 1 | 893512 |
| R1108 | 2 | Nut, Eye 3/4” Bolt | 1 | 893520 |
Note:
- Hardware ultimate strength must be de-rated by the appropriate strength factor as specified in Section 26 of the National Electrical Safety Code.
