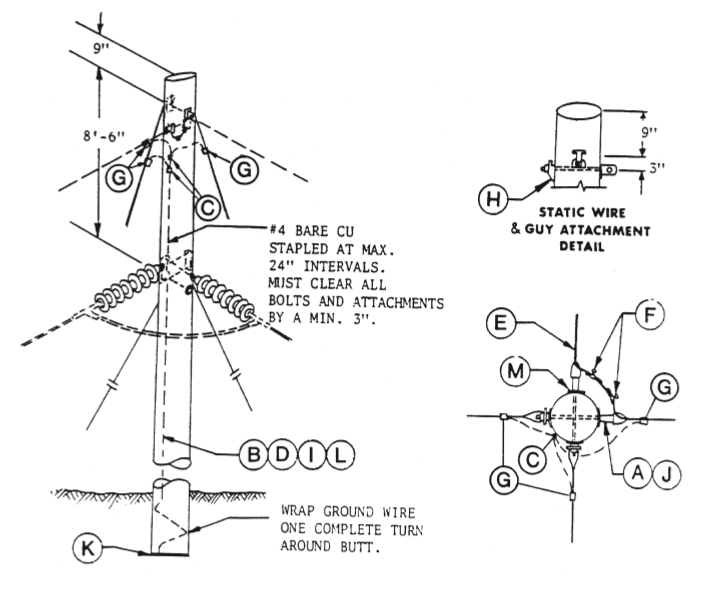

R1606 - 115kV 60° - 90° Line Angle Vertical Static Wire Attachment
Revision 5
Oct 27, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1606 | A | Bolt, Machine 3/4" x 12" | 1 | 124857 |
| B | Staple, Galv 1-1/2" | 35 | 139114 | |
| C | Connector, Squeezon Cu (#150) #6-#2 to #6-#2 | 1 | 211508 | |
| D | Wire, #4 Cu Bare SD Sol | 75' | 848476 | |
| E | Deadend, Guy Preformed 3/8" | 2 | 880452 | |
| F | Clamp, Crosby 3/8" | 2 | 880501 | |
| G | Clamp, 3/8" Static to #4 Cu | 3 | 884123 | |
| H | Hook, Guy | 2 | 884553 | |
| I | Moulding, Plastic Ground 8' | 1 | 892001 | |
| J | Nut, Thimble Eye 3/4" | 2 | 893588 | |
| K | Plate, Pole Ground | 1 | 1001807 | |
| L | Staple, Ground Moulding | 6 | 905804 | |
| M | Washer, Galv Sq 4" Curved 15/16" Hole | 2 | 910027 |
