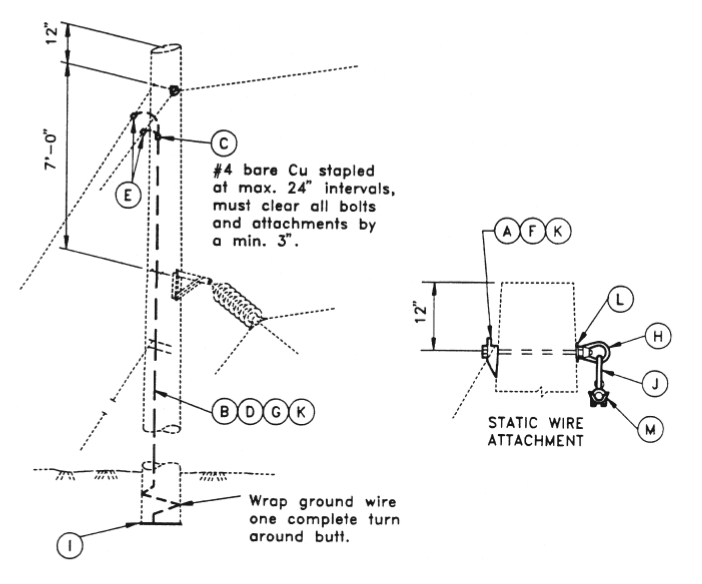

R1605 - 115kV 0° - 60° Line Angle Vertical Static Wire Attachment
Revision 7
Oct 27, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1605 | A | Bolt, Machine 3/4" x 12" | 1 | 124587 |
| B | Staple, Galv 1-1/2" | 35 | 139114 | |
| C | Connector, Squeezon Cu (#150) #6-#2 to #6-#2 | 1 | 211508 | |
| D | Wire, #4 Cu Bare SD Sol | 75' | 848476 | |
| E | Clamp, Jumper 3/8" Static to #4 Cu | 2 | 884123 | |
| F | Hook, Guy | 1 | 884553 | |
| G | Moulding, Plastic Ground 8' | 1 | 892001 | |
| H | Eyenut, Oval 3/4" | 1 | 893520 | |
| I | Plate, Pole Ground | 1 | 1001807 | |
| J | Shackle, Anchor 5/8" Long | 1 | 1000164 | |
| K | Staple, Ground Moulding | 6 | 905804 | |
| L | Washer, Galv Sq 4" Curved 15/16" Hole | 1 | 910027 | |
| M | Clamp, Suspension #1-250 kcmil Cu | 1 | 924341 |
