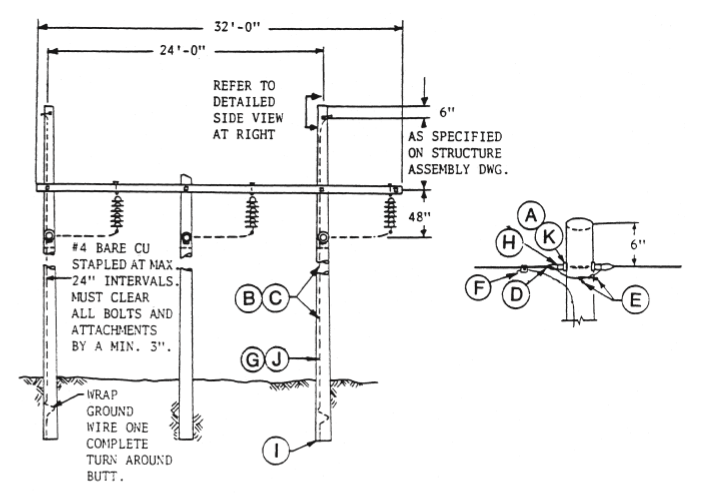

R1604 - 115kV Double Deadend H-Frame Static Wire Attachment
Revision 5
Oct 27, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1604 | A | Bolt, DA 5/8" x 18" | 2 | 125957 |
| B | Staple, Galv 1-1/2" | 70 | 139114 | |
| C | Wire, #4 Cu Bare SD Sol | 150' | 848476 | |
| D | Deadend, Guy Preformed 3/8" | 4 | 880452 | |
| E | Clamp, Crosby 3/8" | 4 | 880501 | |
| F | Clamp, Jumper 3/8" Static to #4 Cu | 2 | 884123 | |
| G | Moulding, Plastic Ground 8' | 2 | 892001 | |
| H | Nut, Thimble Eye 5/8" | 4 | 893570 | |
| I | Plate, Pole Ground | 2 | 1001807 | |
| J | Staple, Ground Moulding | 12 | 905804 | |
| K | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 |
