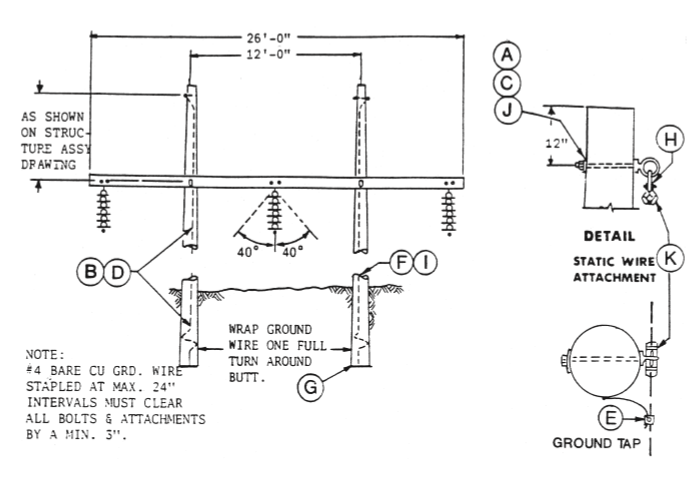

R1601 - 115kV Tangent H-Frame Static Wire Assembly
Revision 6
Oct 27, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1601 | A | Bolt, Oval Eye 5/8" x 12" | 2 | 120204 |
| B | Staple, Galv, 1-1/2" | 70 | 139114 | |
| C | Washer, Galv Double Coil Spring Lock 5/8" Bolt | 2 | 1001443 | |
| D | Wire, #4 Cu Bare SD Sol | 150' | 848476 | |
| E | Clamp, Jumper 3/8" Static to #4 Cu | 2 | 884123 | |
| F | Moulding, Plastic Ground 8' | 2 | 892001 | |
| G | Plate, Pole Ground | 2 | 1001807 | |
| H | Shackle, Anchor 5/8" Long | 2 | 1000164 | |
| I | Staple, Ground Moulding | 12 | 905804 | |
| J | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 | |
| K | Clamp, Suspension #1-250 kcmil Cu | 2 | 924341 |
