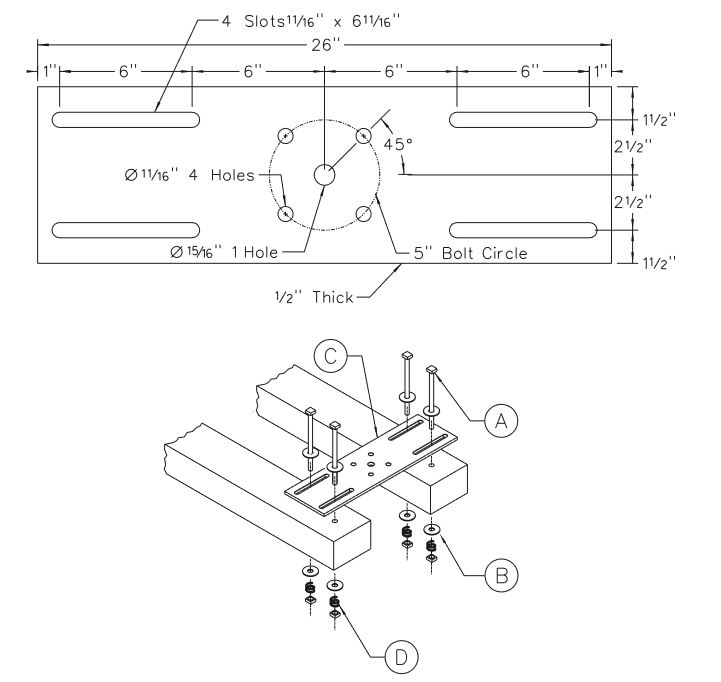

R1402 - Double Arm Insulator Mounting Plate
Revision 4
Jul 5, 2006
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| R1402 | A | Bolt, Machine 5/8" x 10" | 4 | 124173 |
| B | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 8 | 196479 | |
| C | Plate, Mounting Double Arm | 1 | 896946 | |
| D | Washer, Galv Double Coil Spring Lock 5/8” | 4 | 1001443 |
Note:
- Plate to be used for mounting 115kV vertical line post insulator (MID 937774).
