PL1001-2 - Devices for Climbing and Working on Steel Structures
Revision 1
Feb 23, 2012

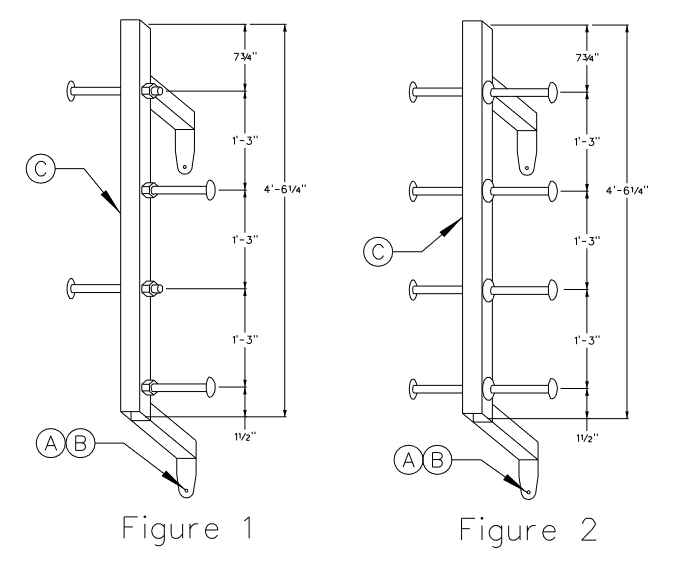

| Compatible Unit | FIG. | ITEM | Description | Qty | MID |
|---|---|---|---|---|---|
| PL1001 | 1 | A | Bolt, Machine 3/8" x 3/4" SS | 2 | 103408 |
| B | Washer, Split Lock 3/8" SS | 2 | 191719 | ||
| C | Device, Climbing Steel Structure | 1 | 741258 | ||
| PL1002 | 2 | A | Bolt, Machine 3/8" x 3/4" SS | 2 | 103408 |
| B | Washer, Split Lock 3/8" SS | 2 | 191718 | ||
| C | Device, Working Steel Structure | 1 | 741266 |
Note:
- Refer to District Drawing A-1753, Pages 1-3, for more detailed dimensions.
