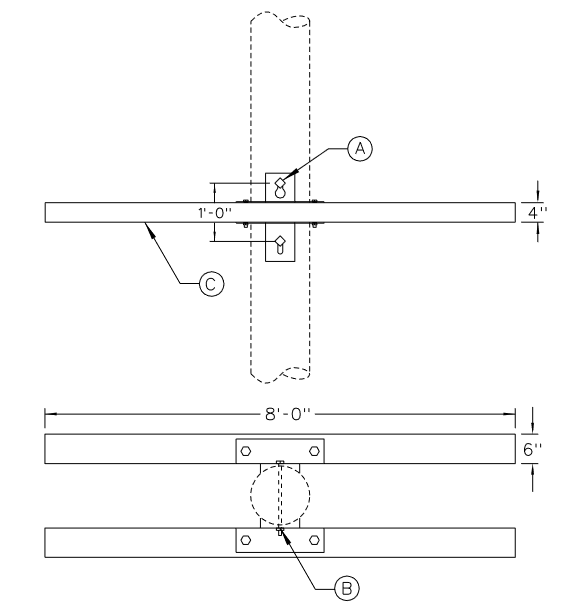

PF0101 - Bog Shoe

Revision 3
Apr 21, 2017



ITEM Description Qty MID
A Bolt, Machine 3/4" x 22" 2 124644
B Washer, 3/4" Galv Double Coil Spring Lock 2 1001445
C Crossarm, Fiberglass Bog Shoe 4" x 6" x 8' 2 1001670

Notes:

  1. Backfill with pit run gravel.
  2. Refer to T&D Guideline No. 4-5-20.0 for bog shoe installation details.
  3. Refer to T&D Guideline No. 4-5-15.0 for details on setting poles in "sensitive areas".
