N0251-2 - Overhead Bonding
Revision 3
Jun 26, 2015

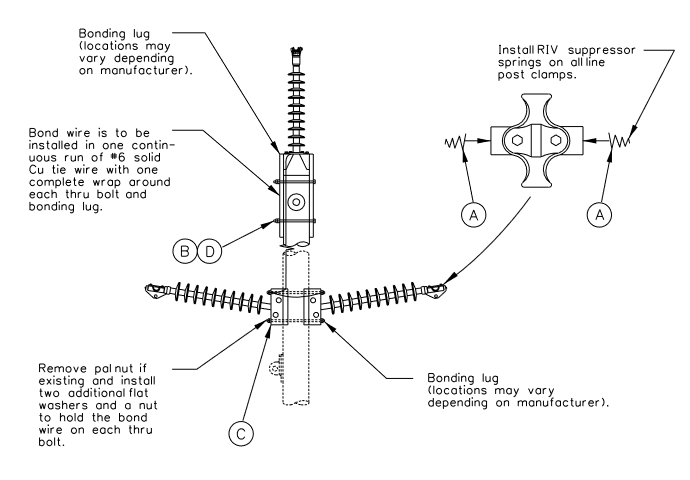

| C.U, | Item | Description | Quantity | MID |
|---|---|---|---|---|
| N0251 | A | Spring, Suppressor RIV | 6 | 145608 |
| B | Washer, Galv Rd 2” Flat 13/16” Hole | 8 | 196487 | |
| C | Wire, #6 Cu Bare Sol SD Tie | 8' | 848484 | |
| D | Washer, Galv Double Coil Spring Lock 3/4" | 4 | 1001445 |

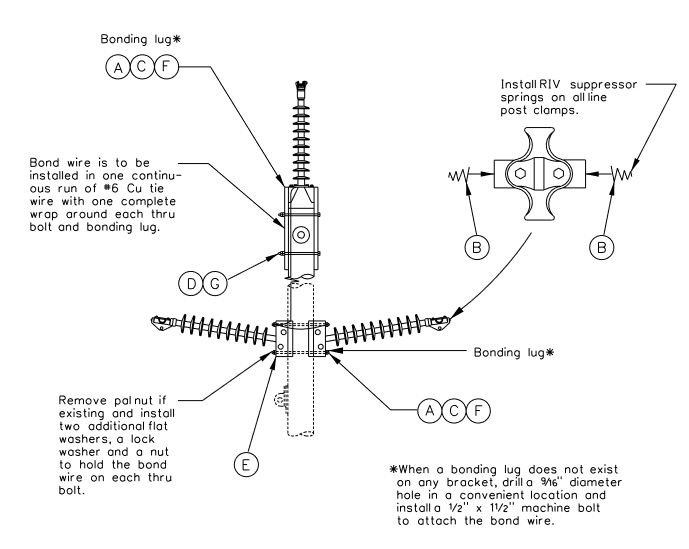

| C.U, | Item | Description | Quantity | MID |
|---|---|---|---|---|
| N0252 | A | Bolt, Machine 1/2” x 1-1/2” Hex Hd w/ Hex Nut | 3 | 102236 |
| B | Spring, Suppressor RIV | 6 | 145608 | |
| C | Washer, Galv Rd 1-3/8” Flat 9/16” Hole | 3 | 196461 | |
| D | Washer, Galv Rd 2” Flat 13/16” Hole | 8 | 196487 | |
| E | Wire, #6 Cu Bare Sol SD Tie | 8' | 848484 | |
| F | Washer, Galv Double Coil Spring Lock 1/2" | 3 | 1001444 | |
| G | Washer, Galv Double Coil Spring Lock 3/4" | 4 | 1001445 |
