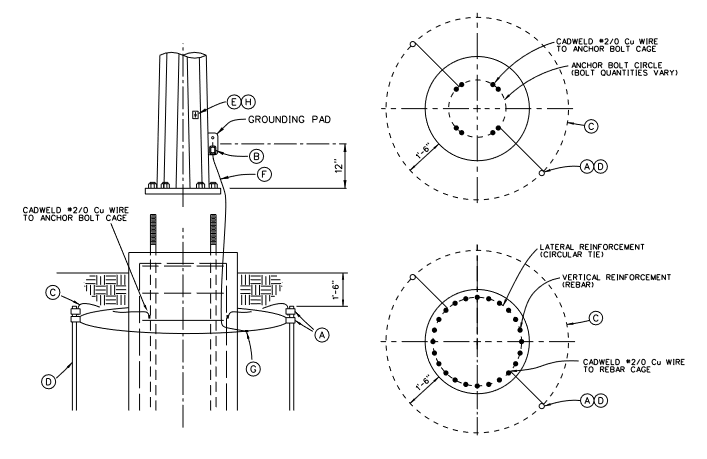

N0122-3 - Grounding Steel Pole Set in Concrete Caisson
Revision 0
Jun 21, 2018
| Compatible Unit | Caisson Dia. | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| N0122 | 5.5' | A | Connector, Wrench-Lok 2/0 Cu to 3/4" Rod | 4 | 213017 |
| B | Tap, Bar #2-350 kcmil Cu | 1 | 217150 | ||
| C | Wire, 2/0 Cu Bare MHD 7-Str | 30' | 847915 | ||
| D | Rod, Ground 3/4" x 8' | 2 | 902230 | ||
| E | Tag, Grounding | 1 | 1001802 | ||
| F | Wire, Copperweld 19-#9 (250 kcmil) Bare DSA | 10' | 1001916 | ||
| G | Connector, Wrench-Lok 19-#9 Copperweld - 2/0 Cu | 1 | 1001956 | ||
| H | Adhesive, Epoxy, Double/Bubble, Extra Fast Setting | 1 | 1002723 |
| Compatible Unit | Caisson Dia. | Item | Description | Qty | Mid |
|---|---|---|---|---|---|
| N0123 | 7.0' | A | Connector, Wrench-Lok 2/0 Cu to 3/4" Rod | 4 | 213017 |
| B | Tap, Bar #2-350 kcmil Cu | 1 | 217150 | ||
| C | Wire, 2/0 Cu Bare MHD 7-Str | 40' | 847915 | ||
| D | Rod, Ground 3/4" x 8' | 2 | 902230 | ||
| E | Tag, Grounding | 1 | 1001802 | ||
| F | Wire, Copperweld 19-#9 (250 kcmil) Bare DSA | 10' | 1001916 | ||
| G | Connector, Wrench-Lok 19-#9 Copperweld - 2/0 Cu | 1 | 10001956 | ||
| H | Adhesive, Epoxy, Double/Bubble, Extra Fast Setting | 1 | 1002723 |
