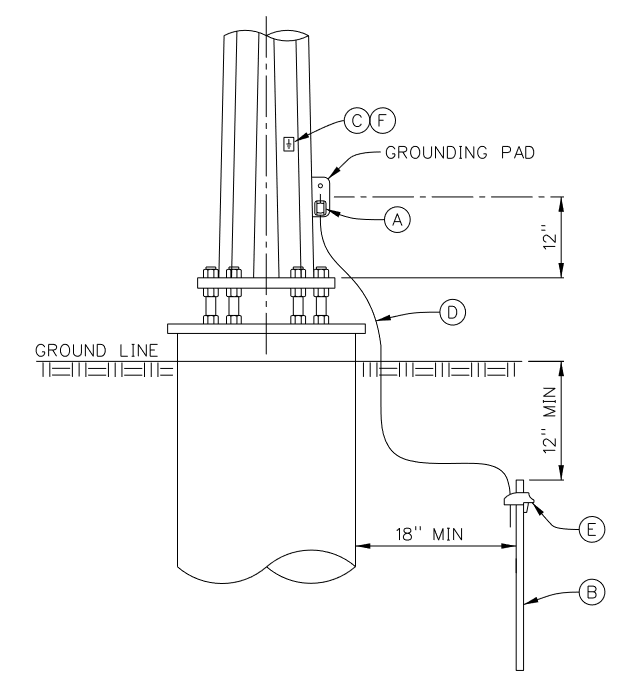

N0121 - Grounding Steel Pole Set in Vibratory Caisson
Revision 0
Apr 22, 2014
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0121 | A | Tap, Bar #2 Sol - 350 kcmil Str Cu | 1 | 217150 |
| B | Rod, Ground 3/4" x 8' | 1 | 902230 | |
| C | Tag, Grounding | 1 | 1001802 | |
| D | Wire, Copperweld 19-#9 (250 kcmil Str) Bare DSA | 10' | 1001916 | |
| E | Connector, Wrench-Lok 250 kcmil Str Cu to 3/4" Rod | 1 | 1001955 | |
| F | Adhesive, Epoxy, Double/Bubble, Extra Fast Setting | 1 | 1002723 |
