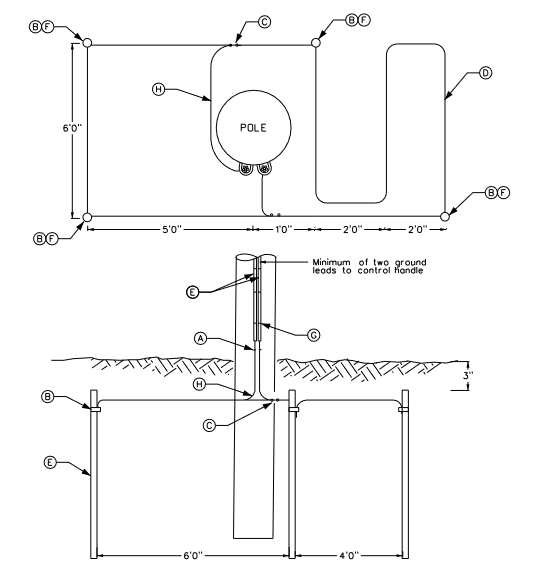

N0105 - Mat System for Grounding Transmission Switch Controls
Revision 8
Feb 15, 2019
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0105 | A | Staple, Galv 1-1/2" | 60 | 139144 |
| B | Connector, Wrench-Lok 2/0 Cu to 3/4" Rod | 4 | 213017 | |
| C | Connector, Split Bolt 4/0 Cu | 4 | 216417 | |
| D | Wire, 2/0 Cu Bare MHD 7-Str | 44' | 847915 | |
| E | Molding, Ground 8' | 1 | 892001 | |
| F | Rod, Ground 3/4" x 8' | 4 | 902230 | |
| G | Staple, Ground Molding | 9 | 905804 | |
| H | Wire, Copperweld 19-#9 (250 kcmil) Bare DSA | 18' | 1001916 |
Notes:
- Place the ground wire on the same side of the pole as the neutral conductor and in the quadrant outside of the climbing space.
- Staple ground wire to pole every 6” for first 8’ above ground. Staple ground wire every 2’ from 8’ above ground to neutral. Staple ground wire molding every 1’.
- Use Copperweld wire (Item H) for leads from ground grid to switch control handle.
