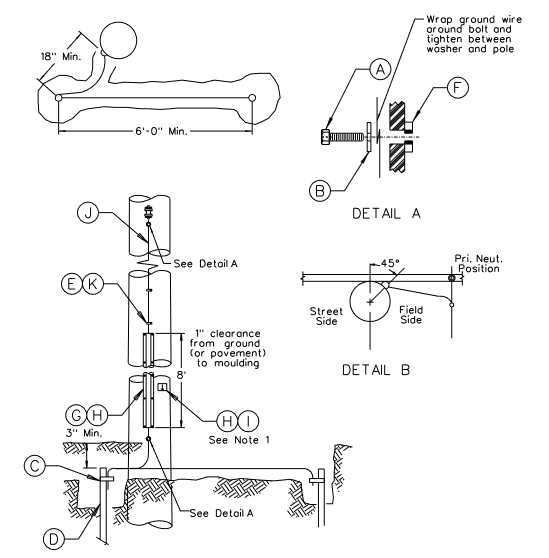

N0102FG - Double Ground Rod Installation on a Fiberglass Pole
Revision 3
Jan 24, 2019
| Compatible Unit | Item | Description | Qty | Mid |
|---|---|---|---|---|
| N0101 | A | Bolt, SS 1/2” x 2” | 2 | 103367 |
| B | Washer, SS Belleville 9/16” Hole | 2 | 191635 | |
| C | Clamp, Ground Rod 5/8” | 2 | 880709 | |
| D | Rod, Ground 5/8” x 8’ | 2 | 902206 | |
| E | Screw, Self-Drilling SS #12-14 x 1-¼" | 12 | 1001496 | |
| F | Anchor, Hollow Wall “Toggler” ½”-13 UNC | 2 | 1001602 | |
| G | Moulding, Ground Plastic Flanged ½”x½”x 8’ | 1 | 1001612 | |
| H | Screw, Self-Drilling SS #8-18 x ¾” | 32 | 1001615 | |
| I | Tag, Grounding | 1 | 1001802 | |
| J | Wire, CW #10X7ST WP | 48' | 1002626 | |
| K | Clip, Wire Lay-in-Lug #6-250 | 12 | 1002775 |
Notes:
- Install grounding tag at eye level next to ground wire moulding. This tag signifies the pole is grounded per NESC Article 094.
- Place the ground wire on the same side of the pole as the neutral conductor and in the quadrant outside of the climbing space. If the neutral is located in the primary position, extend ground wire moulding up through the supply space and connect to neutral as shown in Detail B.
- Ground plates are preferred for grounding new poles. Refer to Compatible Unit N0104FG for installing a ground rod with a ground plate on a fiberglass pole.
