L0110-2 - Flood & Area Light Brackets
Revision 3
Apr 19, 2021

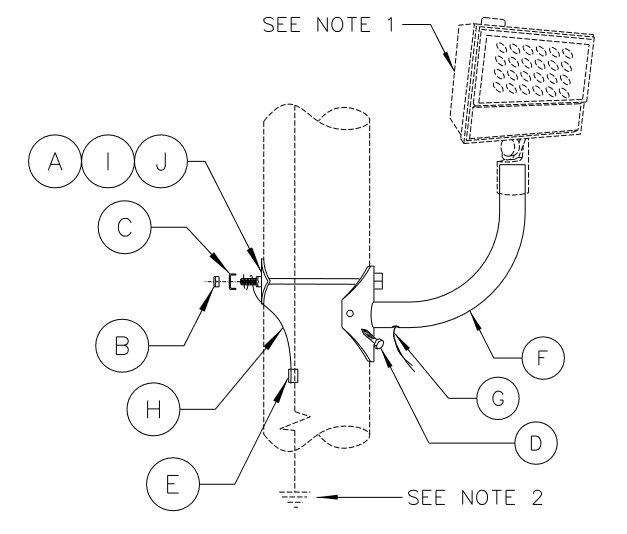

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| L0110 | A | Bolt, Machine 5/8” x 12” | 1 | 124199 |
| B | Nut, Square 5/8” Galv | 1 | 141317 | |
| C | Clip, Bonding 5/8" | 1 | 145658 | |
| D | Screw, Lag Galv 1/2” x 4” | 2 | 1003315 | |
| E | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |
| F | Bracket, Flood Light 1’ | 1 | 692691 | |
| G | Wire, Cover Fiberglass Tubing 3’ | 3' | 713330 | |
| H | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |
| I | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| J | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
Notes:
- LED Flood light must be ordered separately. See Compatible Unit L0100.
- Bonding involves electrically connecting conductive equipment in order to maintain a common electrical potential. For equipment to be effectively grounded then the bond wire must be connected to a grounding electrode.

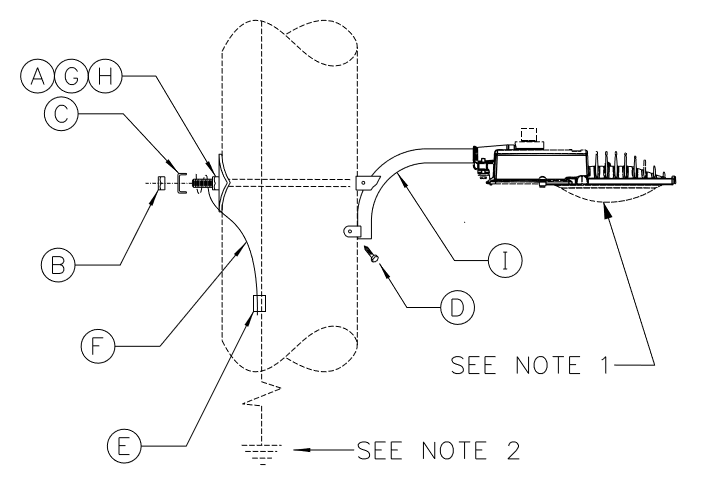

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| L0112 | A | Bolt, Machine 5/8” x 12” | 1 | 124199 |
| B | Nut, Square 5/8” Galv | 1 | 141317 | |
| C | Clip, Bonding 5/8" | 1 | 145658 | |
| D | Screw, Lag Galv 1/2” x 4” | 2 | 1003315 | |
| E | Connector, C-Crimp Cu #4-#4 | 1 | 211508 | |
| F | Wire, #4 Cu Bare SD Sol | 3' | 848476 | |
| G | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| H | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | |
| I | Bracket, Area Light 2' | 1 | 1001480 |
Notes:
- LED area light must be ordered separately. See Compatible Units L0101 — L0102.
- Bonding involves electrically connecting conductive equipment in order to maintain a common electrical potential. For equipment to be effectively grounded then the bond wire must be connected to a grounding electrode. .
