L0103-4 Obsolete - LED Area Light Retrofit Luminaires
Revision 1
Mar 17, 2015
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|

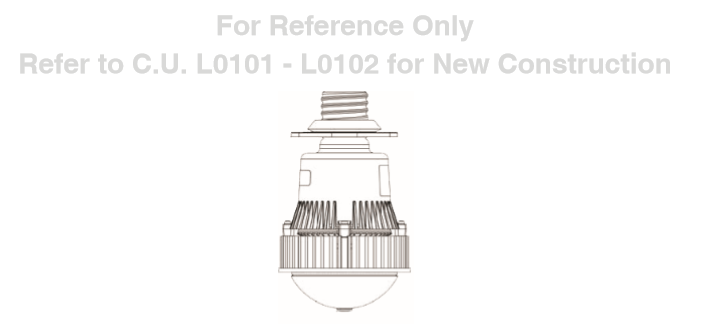

| L0103 | Luminaire, Area Light 50W 120-277V LED Retrofit Kit | 1 | 1002542 |
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| L0104 | Luminaire, Area Light 40W 120-277V LED Retrofit Kit | 1 | 1002548 |
Notes:
- These kits are intended to convert District GE power arm 100W high pressure sodium (HPS) area lights to LED area lights. In-service HPS area lights are to be converted to LED when serviced.
- The 50W LED retrofit kit (Compatible Unit L0103) will be standard LED area light for most locations. The 40W LED retrofit kit (Compatible Unit L0104) is a full cutoff luminaire and is to be used for all area lights on Camano Island. Compatible Unit L0104 can also be used when light trespass must be avoided.
