J0310 - Support, Fiber Optic Snowshoe
Revision 5
Apr 24, 2019
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| J0310 | A | Bolt, Oval Eye 5/8” x 14” | 1 | 120212 |
| B | Clevis, Thimble Galv | 2 | 170275 | |
| C | Deadend, Preformed Fiber Optic Cable | 2 | 170316 | |
| D | Link Extension 10” Galv Clevis-Eye | 2 | 171207 | |
| E | Nut, Eye 5/8” | 1 | 893512 | |
| F | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| G | Support, Fiber Optic Snowshoe Assembly | 1 | 1001006 | |
| H | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | |
| I | Marker, Caution Fiber Optic Cable, ID 0.5”-0.6” | 1 | 1001594 |
Notes:
- Refer to Compatible Units J0140 - J0141 for preformed deadend details.

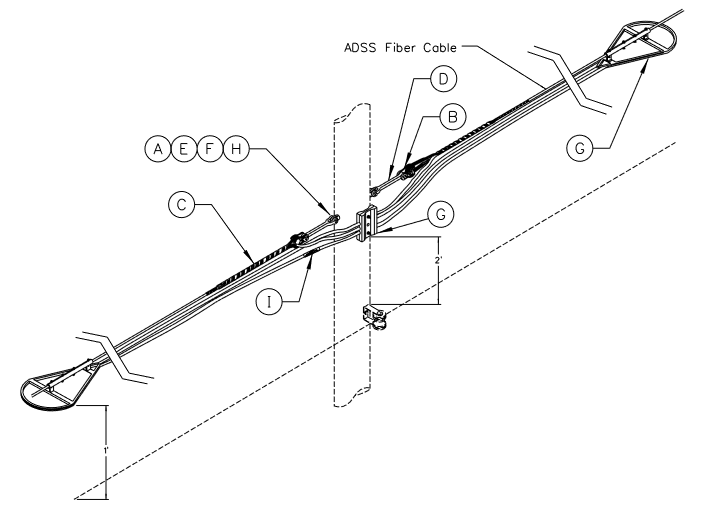

- “Snowshoes” are used to provide up to 200' of reserve fiber optic cable storage in-line with the cable span. Cable reserves avoid splicing fiber optic cable by supplying extra cable for future pole or line re-locations. Snowshoe assemblies should be installed a minimum of 1 assembly per every 20 spans in rural settings and every 10 spans in urban areas and along busy roads. Each snowshoe assembly is complete with all required hardware and instructions.
- When installing snowshoe above the neutral locate the support up to 2' above it to prevent the snowshoe from coming in contact with the neutral mid-span.
