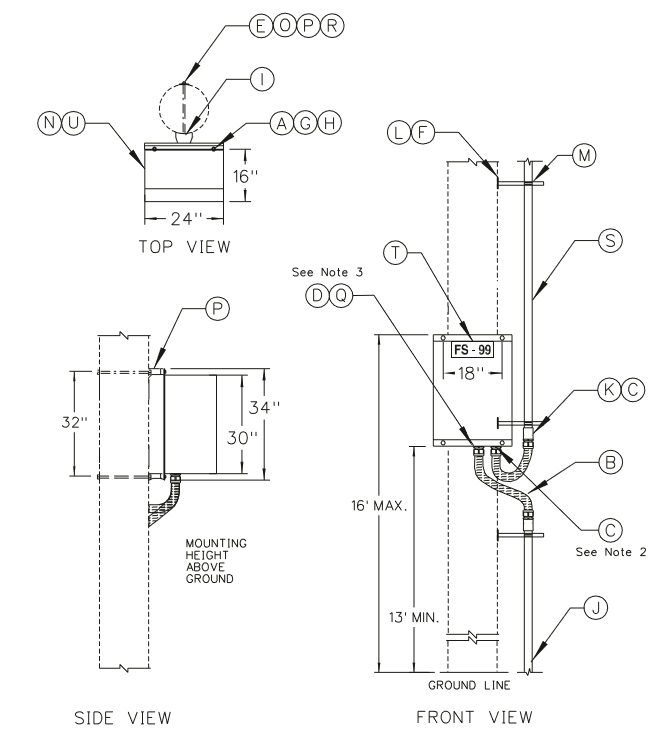

J0302 - Fiber Optic Splice Box — Pole Mounted Underground to Overhead Splice
Revision 5
Apr 19, 2021
Notes:
- Maintain a 6" minimum bending radius for fiber optic cable when coiled in splice box.
- Field drill bottom rear corner of splice box for conduit fitting and 1/4" drain hole. Use 2" male adapter and 2" lock-ring if attaching rigid pipe or sweep to enclosure.
- Fiber optic splice box identification numbers will be assigned by Drafting. Install 3" white-on-black reflective identification numbers centered on the top of the cabinet door as shown. MID's of pertinent decals are listed in District Material Standard 387151.1.
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| J0302 | A | Bolt, SS Hex Head 1/2" x 1" | 4 | 103325 |
| B | Conduit, Flexible Liquid-Tight Conduit 2" | 10' | 105066 | |
| C | Fitting, Liquid-Tight Conduit 2" | 4 | 108721 | |
| D | Locknut, 2" Sealing | 1 | 109167 | |
| E | Bolt, Machine 5/8" x 18" | 2 | 124222 | |
| F | Screw, Lag 1/2" x 4" | 8 | 1003315 | |
| G | Washer, SS Rd 1-1/4" Flat 9/16" Hole | 4 | 191627 | |
| H | Washer, SS Split Lock 1/2" | 4 | 191669 | |
| I | Washer, Galv Rd 1-3/8" Flat 11/16" Hole | 2 | 196479 | |
| J | Conduit, PVC 2" Sch 80 Gray | 10' | 250069 | |
| K | Adapter, PVC 2" Female Steel-to-PVC | 2 | 257825 | |
| L | Bracket, Conduit Standoff 15" | 4 | 761123 | |
| M | Clamp, Conduit Standoff 2" | 4 | 761321 | |
| N | Box, NEMA 4X, 30" x 24" x 16" | 1 | 800450 | |
| O | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| P | Bracket, Standoff, Large for Pole Mounted Equipment | 2 | 1001007 | |
| Q | Adapter, Male 2" PVC | 1 | 1001390 | |
| R | Washer, Galv Double Coil Spring Lock 5/8” | 2 | 1001443 | |
| S | Conduit, PVC 2" Sch 40 Gray | 30' | 1001852 | |
| T | Label, Equipment 3"H White-on-Black Reflective | * | ------- | |
| U | Padlock, P Key, 5/16" Steel Shackle, 7/8"W x 3/4"H | 1 | 1000750 |
