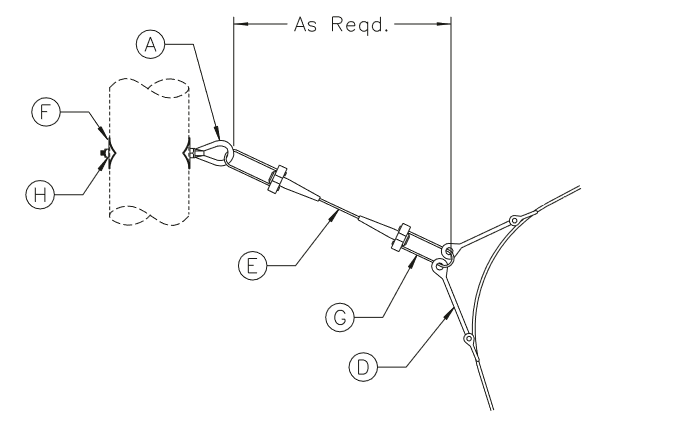

J0144 - Offset Light-Duty Fiber Optic Cable Double Deadend
Revision 1
Dec 30, 2021
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| J0144 | A | Bolt, Oval Eye 5/8” x 14” | 1 | 120212 |
| D | Link Extension 10” Galv Clevis-Eye | 2 | 171207 | |
| E | Wire, Guy EHS 3/8” Galv Stl 7-Str | 5' | 858623 | |
| F | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| G | Deadend, Guy Automatic 3/8” | 2 | 923418 | |
| H | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 |
Notes:
- This compatible unit is intended for structures with line angles > 20° where ADSS cable must be offset to avoid conflicts with pole-mounted equipment or other obstructions.
- Cable Diameter Range: 0.550” - 0.599”
- Maximum Working Strength: 2,500 lb
- Light-duty deadends are intended for ADSS spans under 400'.
- Reinforcing rods are left hand lay. Heliformed deadend is right hand lay.
