J0142-3 - Medium-Duty Fiber Optic Cable Preformed Deadends

Revision 1
Dec 30, 2021

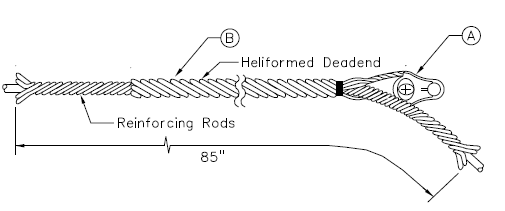

Compatible Unit Item Description Qty MID
J0142 A Clevis, Thimble Galv 1 170275
  B Deadend, Preformed FO Cable 4000 lb Max Tension 1 1002270



Notes:

  1. Cable Diameter Range: 0.550” - 0.599”
  2. Maximum Working Strength: 4,000 lb
  3. Medium-duty deadends are intended for ADSS spans of 400' and longer. Use Compatible Unit J0140 - J0141, light-duty deadends on spans less than 400'.
  4. Reinforcing rods are left hand lay. Heliformed deadend is right hand lay.
  5. Additional link extensions (MID 171207) may be used to extend deadends so they clear risers or other pole mounted obstructions.
