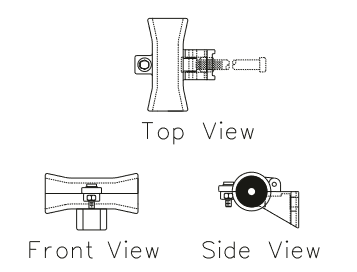

J0115 - Fiber Optic Cable Tangent Clamp (Alternate)
Revision 4
Dec 30, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| J0115 | Clamp, Tangent Unit Fiber Optic Cable (For 36 and 72 Count Fiber) | 1 | 170902 |
| Nut, Square 5/8” Galv | 1 | 141317 | |
| J0116 | Clamp, Tangent Unit Fiber Optic Cable (For 12 Count Fiber) | 1 | |
| Nut, Square 5/8” Galv | 1 | 141317 |
Notes:
- Cable Diameter Range: 0.576” - 0.625”
- Maximum Line Angle: 20°
- Tangent clamps may be used when there is insufficient pole space to use a suspension clamp. Refer to Compatible Units J0105 - J0106.
