J0107 - Parallel Fiber Optic Suspension Clamps
Revision 1
Dec 30, 2021

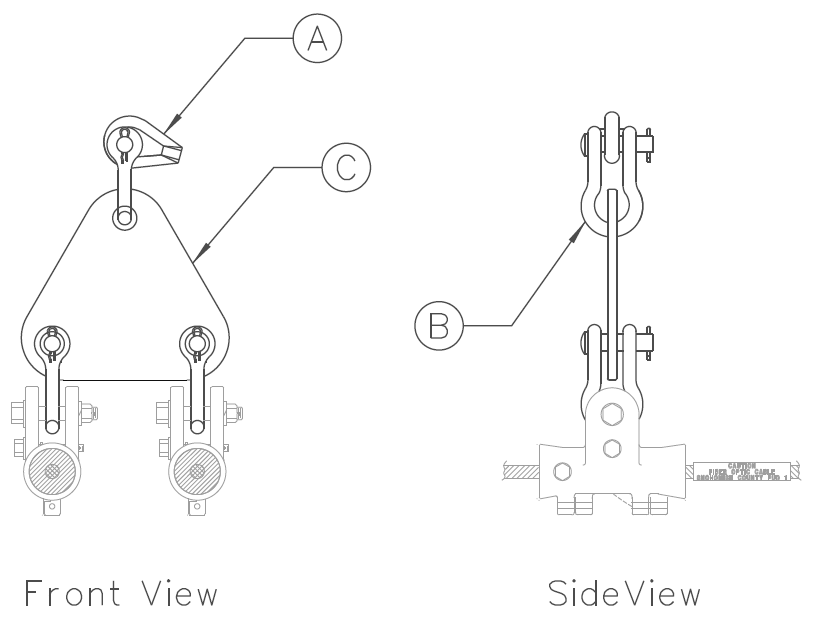

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| J0107 | A | Nut, Eye 5/8" | 1 | 893512 |
| B | Shackle, Anchor 5/8” Long | 3 | 1000164 | |
| C | Plate, Yoke Fiber Optic | 1 | 1002274 |
Notes:
- Suspension clamps (Compatible Unit J0105-6) shown to show configuration and are not included on this assembly.
- Maximum Line Angle: 20°
