J0012-JA0072 - All-Dielectric Self Supporting Fiber Optic Cable
Revision 8
Dec 30, 2021

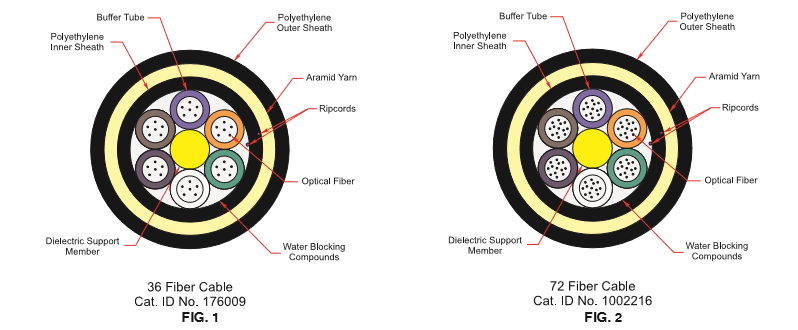

| Compatible Unit | Fig. | Description | Qty | MID |
|---|---|---|---|---|
| J0012 | X | Cable, Fiber Optic 12 Str ADSS | 1' | 5004169 |
| JA0012 | X | Cable, Fiber Optic 12 Str ADSS | 100' | 5004169 |
| J0036 | 1 | Cable, Fiber Optic 36 Str ADSS | 1' | 176009 |
| JA0036 | 1 | Cable, Fiber Optic 36 Str ADSS | 100' | 176009 |
| J0072 | 2 | Cable, Fiber Optic 72 Str ADSS | 1' | 1002216 |
| JA0072 | 2 | Cable, Fiber Optic 72 Str ADSS | 100' | 1002216 |
Related Fiber Optic Cable Standards
4-25-1.0 All-Dielectric Self-Supporting (ADSS) Fiber Optic Cable Overhead and Underground Installation Guideline
