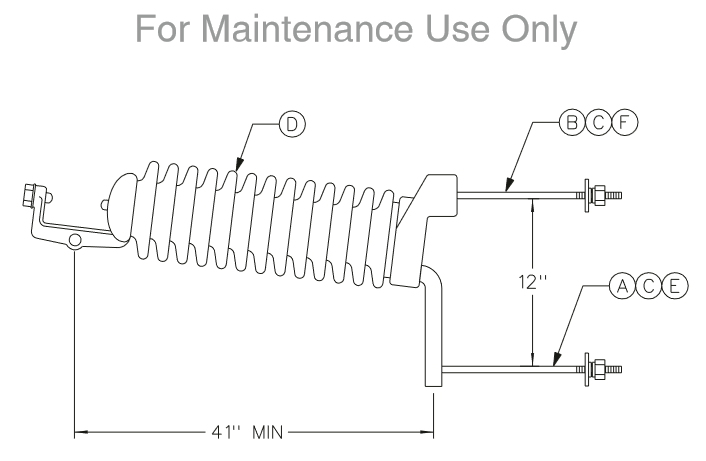

I0502 - "OBSOLETE" 115kV Horizontal Post Insulator
Revision 4
Aug 26, 2010
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0502 | A | Bolt, Machine 5/8" x 16" | 1 | 124214 |
| B | Bolt, Machine 3/4" x 16" | 1 | 124602 | |
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| D | Insulator, Horizontal Post 115kV 450kV BIL | 1 | 937956 | |
| E | Washer, Galv Double Coil Spring Lock 5/8" | 1 | 1001443 | |
| F | Washer, Galv Double Coil Spring Lock 3/4" | 1 | 1001445 |
