I0472 - Distribution Cutout Cover

Revision 0
Feb 22, 2021



Compatible Unit Description Qty MID

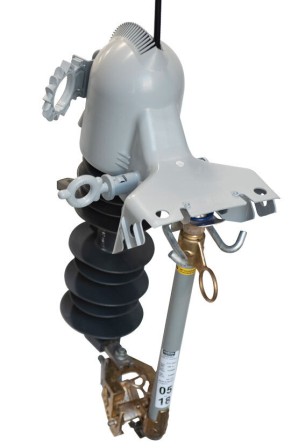

I0472 Distribution Cutout Cover, Wildlife Guard 1 5003583

Notes:

  1. For use on metal poles where horizontal distance between the energized portion of the cutout and any grounded component is less than 60".
  2. Cutout cover/guard is designed to protect against outages caused by bird and animal contacts with energized bushing terminals on 12,470 Grounded Y/7,200 volt distribution systems per T&D Guideline 4-23-2.5.
  3. Guard allows for hot-stick installation.
