I0465-76 - Bird Flight Diverters
Revision 6
Oct 18, 2024
| Compatible Unit | Description | Conductor Dia. Range | Qty | MID |
|---|---|---|---|---|
| I0465 | Diverter, Bird Flight #4 Cu | 0.175" - 0.249" | 1 | 1001549 |
| I0466 | Diverter, Bird Flight #4 - #2 ACSR | 0.250" - 0.349" | 1 | 1001620 |
| I0468 | Diverter, Bird Flight 336.4 kcmil AAC | 0.600" - 0.770" | 1 | 1001668 |
| I0469 | Diverter, Bird Flight 795 kcmil AAC | 0.970" - 1.050" | 1 | 1001919 |
| Compatible Unit | Description | Conductor Dia. Range (in) | Qty | MID |
|---|---|---|---|---|

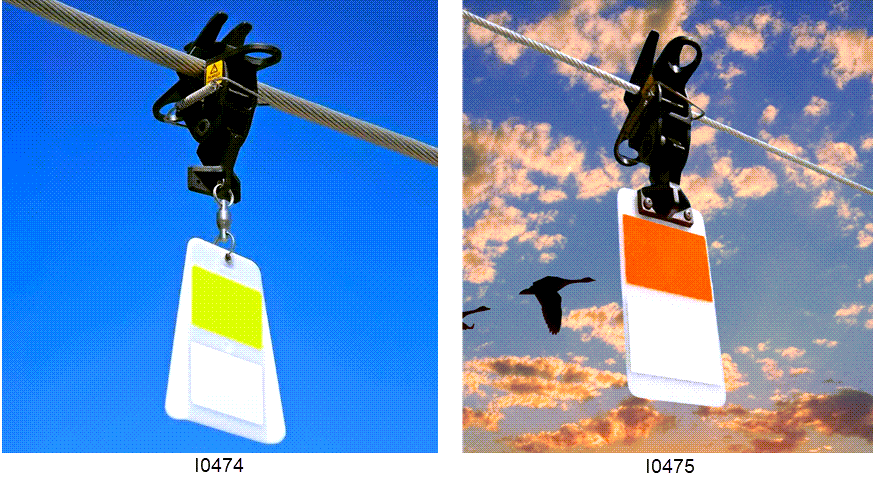

| I0474 | Diverter Bird Firefly Spinning #4-3/0 | 0.16-0.63 | 1 |
5004164 |
| I0475 | Diverter Bird Firefly Non-Spinning 1/0-1272 | 0.39-2.75 | 1 | 1001961 |
| Compatible Unit | Description | Conductor Dia. Range (in) | Qty | MID |
|---|---|---|---|---|

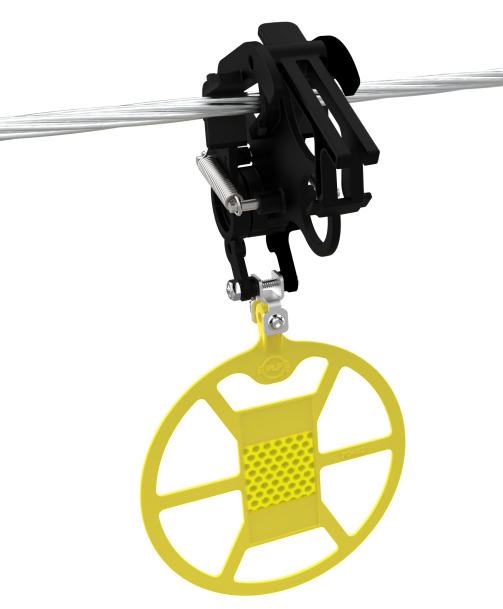

| I0476 | Diverter, Bird, Flight, Raptor-Y #6-1276 | 0.100-1.750 | 1 |
5001611 |
Notes:
- Bird flight diverters are designed to make overhead lines and guyed structures more visible to birds. When marking conductors on multi-phase lines, overall visibility is improved by staggering the application of bird flight diverters. They are normally installed only on phase conductors and where present, on shield wires.

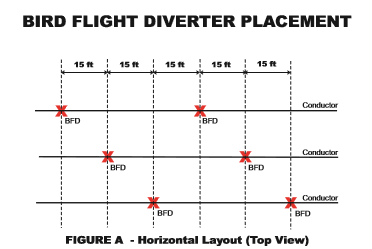

- When their use is necessary, bird flight diverters should be installed at 15 ft staggered intervals along each conductor as shown in Figure A or as appropriate for the framing. For conductor framings that do not fit the illustrated examples, contact Standards for recommended placement.
- Bird flight diverters may be applied either by hand on de-energized lines or by hot stick on energized lines.
- Contact Standards for assistance if bird flight diverters are needed for conductor sizes other than those indicated above.
