I0463-4 - Molded Plastic Polymer Vise-Top Insulator Covers
Revision 4
Dec 08, 2020

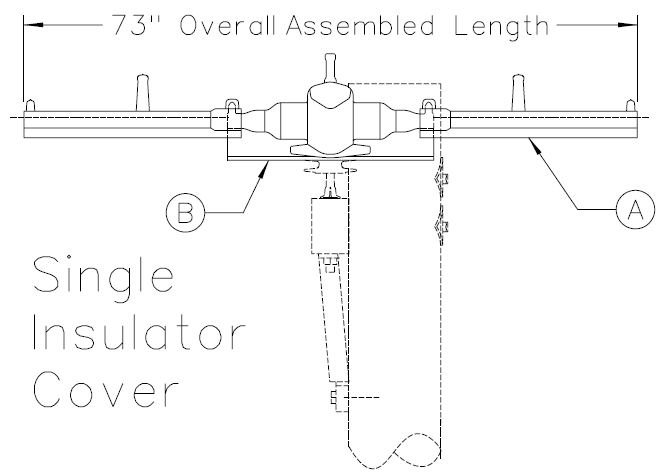

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0463 | A | Cover, Molded Plastic Extension Arm, Wildlife Protection | 2 | 1002058 |
| B | Cover, Body, Polymer Vise-Top Insulator, Wildlife Protection | 1 | 1002329 |
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| I0464 | A | Cover, Molded Plastic Extension Arm, Wildlife Protection | 2 | 1002058 |
| B | Cover, Body, Polymer Vise-Top Insulator, Wildlife Protection | 2 | 1002329 |
Notes:
- CAUTION - Covers are not designed for human touch protection against energized lines or equipment.
- Covers are designed to fit over 15kV polymer vise-top insulators, District MID 1002030. They can be installed under energized conditions using shotgun type hotsticks.
- Covers are designed to fit conductor diameters in the range 0.1620” - 1.063”, i.e., from #6 solid bare copper - 795 kcmil 45/7 ACSR.
- Field trim covers for double insulator installations as needed. Be sure that no wire is exposed between covers.
