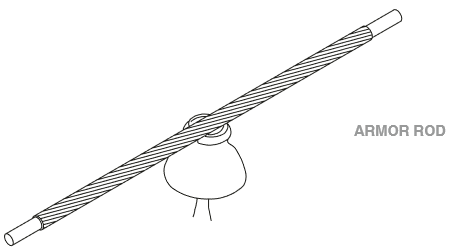

H0102-H0301 - Rod, Preformed Armor
Revision 4
Feb 14, 2014
| Compatible Unit | Conductor Size | Dia. Range (in) | Color Code | Qty | MID |
|---|---|---|---|---|---|
| H0102 | #2 ACSR | 0.309 - 0.326 | Red | 1 Set | 902876 |
| H0103 | 1/0 ACSR | 0.390 - 0.413 | Yellow | 1 Set | 902850 |
| H0104 | 3/0 ACSR | 0.491 - 0.521 | Orange | 1 Set | 902884 |
| H0105 | 336.4 kcmil ACSR | 0.680 - 0.703 | Blue | 1 Set | 902909 |
| H0106 | 795 kcmil ACSR | 1.036 - 1.064 | Blue | 1 Set | 902925 |
| H0201 | 3/0 AAC | 0.464 - 0.490 | Green | 1 Set | 902959 |
| H0202 | 336.4 kcmil AAC | 0.656 - 0.679 | Brown | 1 Set | 902967 |
| H0203 | 795 kcmil AAC | 1.017 - 1.035 | Brown | 1 Set | 902983 |
| H0204 | 1272 kcmil AAC | 1.270 - 1.327 | White | 1 Set | 1003539 |
| Compatible Unit | Conductor Size | Dia. Range (in) | Color Code | Qty | MID |
|---|---|---|---|---|---|

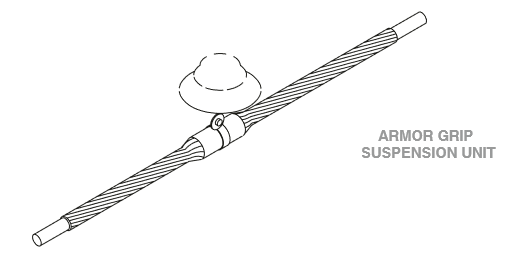

| H0301 | Armor-Grip Suspension 795 kcmil ACSR | 1.041 - 1.074 | Blue | 1 Set | 902991 |
