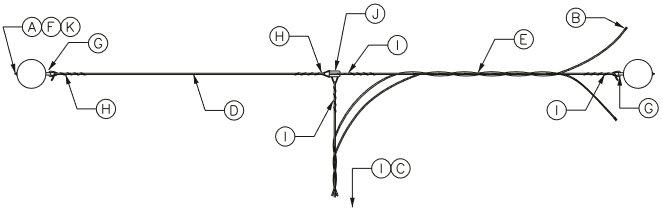

G1002-10 - "Y" Guy Service *Maintenance Only*

Compatible Unit	Item	Description	Qty	MID
G1002	A	Bolt, Machine 5/8” X 14”	2	124206
	B	Connector, Sqeezon Al	3	211---
	C	Connector, Service Entrance Sleeve	3	221---
	D	Wire, #2 ACSR 6/1	As Req	831083
	E	Wire, #2 Al TPX 600V OH	As Req	831794
	F	Washer, Galv Sq 3” Curved 13/16” Hole	2	910019
	G	Insulator, Spool w/ Rack #1	2	925688
	H	Deadend, Preformed #2 ACSR 6/1	2	928921
	I	Deadend, Wedge #2-2/0 AAC Flex Bail	4	1001163
	J	Insulator, Strain #2	1	939118
	K	Washer, Galv Double Coil Spring Lock	2	1001443
G1010	A	Bolt, Machine 5/8” X 14”	2	124206
	B	Connector, Sqeezon Al	3	211---
	C	Connector, Service Entrance Sleeve	3	221---
	D	Wire, #2 ACSR 6/1	As Req	831083
	E	Wire, 1/0 Al TPX 600V OH	As Req	831786
	F	Washer, Galv Sq 3” Curved 13/16” Hole	2	910019
	G	Insulator, Spool w/ Rack #1	2	925688
	H	Deadend, Preformed #2 ACSR 6/1	2	928921
	I	Deadend, Wedge #2-2/0 AAC Flex Bail	4	1001163
	J	Insulator, Strain #2	1	939118
	K	Washer, Galv Double Coil Spring Lock	2	1001443
