G0401-4 - Fiberglass Strain Insulators w/ Preform Deadends
Revision 1
Jun 30, 2010

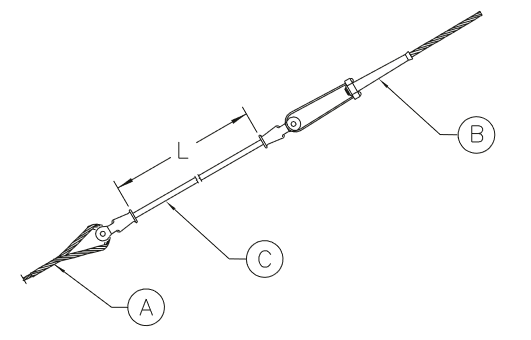

| Compatible Unit | Guy Size | L | Item | Description | Qty | MID |
|---|---|---|---|---|---|---|
| G0401 | 3/8" | 78" | A | Deadend, Guy Preformed 3/8” | 1 | 880452 |
| B | Deadend, Guy Automatic 3/8" | 1 | 923418 | |||
| C | Insulator, Strain FG 78” | 1 | 939209 | |||
| G0402 | 1/2" | 78" | A | Deadend, Guy Preformed 1/2” | 1 | 880460 |
| B | Deadend, Guy Automatic 1/2" | 1 | 923426 | |||
| C | Insulator, Strain FG 78” | 1 | 939209 | |||
| G0403 | 3/8" | 144" | A | Deadend, Guy Preformed 3/8” | 1 | 880452 |
| B | Deadend, Guy Automatic 3/8" | 1 | 923418 | |||
| C | Insulator, Strain FG 144” | 1 | 939267 | |||
| G0404 | 1/2" | 144" | A | Deadend, Guy Preformed 1/2” | 1 | 880460 |
| B | Deadend, Guy Automatic 1/2" | 1 | 923426 | |||
| C | Insulator, Strain FG 144” | 1 | 939267 | |||
Note:
- Compatible Units G0401 - G0404 are intended for those situations where an additional strain insulator must be installed in a down or span guy
