G1020-9 - Automatic & Preform Deadends
Revision 2
Aug 4, 2016
| Compatible Unit | Guy Strand | Deadend Type | Bail Type | Typical Overall Length | Qty | MID |
|---|---|---|---|---|---|---|

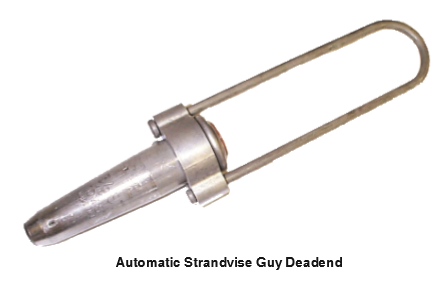

| G1020 | 5/16" Utilities | Automatic | Short | 9-7/8 in | 1 | 923400 |
| G1021 | 3/8" EHS | Automatic | Short | 12-7/8 in | 1 | 923418 |
| G1022 | 1/2" EHS | Automatic | Short | 16-5/16 in | 1 | 923442 |
| G1023 | 3/8" EHS | Automatic | Long | 18 in | 1 | 923434 |
| G1024 | 1/2" EHS | Automatic | Long | 20-1/2 in | 1 | 923426 |
| Compatible Unit | Guy Strand | Deadend Type | Bail Type | Typical Overall Length | Qty | MID |
|---|---|---|---|---|---|---|

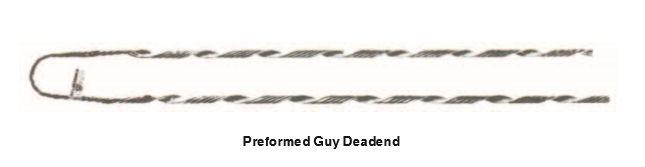

| G1027 | 5/16" Utilities | Preformed | Black | 31 in | 1 | 880444 |
| G1028 | 3/8" EHS | Preformed | Orange | 33 - 35 in | 1 | 880452 |
| G1029 | 1/2" EHS | Preformed | Blue | 43 - 49 in | 1 | 880460 |
