G0107 - 3/8" Sidewalk Guy
Revision 7
Apr 19, 2021

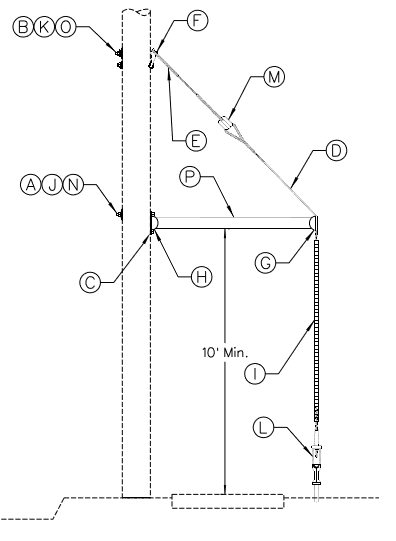

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| G0107 | A | Bolt Machine 5/8” x 14” | 1 | 124206 |
| B | Bolt, Machine 3/4” x 14” | 2 | 124595 | |
| C | Screw, Lag 1/2” x 4” | 2 | 1003315 | |
| D | Wire, Guy EHS 3/8” Galv Stl 7-Str | 56' | 858623 | |
| E | Deadend, Guy Preformed 3/8” | 3 | 880452 | |
| F | Hook, Combination Guy | 1 | 884579 | |
| G | Clamp, Pipe Guy 2” | 1 | 885759 | |
| H | Flange, Pole 2” | 1 | 885783 | |
| I | Marker, Guy Yellow Plastic 8’ | 1 | 900052 | |
| J | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| K | Washer, Cast Sq 4” Curved 15/16” Hole | 1 | 910035 | |
| L | Deadend, Guy Automatic 3/8” | 1 | 923418 | |
| M | Insulator, Strain #2 | 1 | 939118 | |
| N | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | |
| O | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| P | Conduit, Steel 2-1/2” | 10' | 1001499 |
Notes:
- The maximum allowable compression load on the 10' 2-1/2" steel pipe is 20,100lbs.
- The sidewalk guy fitting allows for a maximum of 3 down guys.
