F0502-20 - Rigid Bends
Revision 9
Sep 24, 2010

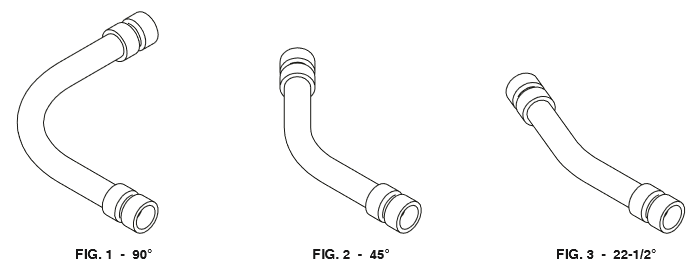

| Compatible Unit | Fig. | Description | Size | Qty | MID |
|---|---|---|---|---|---|
| F0502 | 1 | Bend, Conduit, Fiberglass, SW 90° 24” R | 2" | 1 | 256520 |
| F0503 | 1 | Bend, Conduit, Fiberglass, SW 90° 24” R | 3" | 1 | 256538 |
| F0504 | 1 | Bend, Conduit, Fiberglass, HW 90° 48” R | 4" | 1 | 256546 |
| F0505 | 1 | Bend, Conduit, Fiberglass, HW 90° 48” R | 6" | 1 | 256562 |
| F0506 | 1 | Bend, Conduit, Fiberglass, HW 90° 60” R | 6" | 1 | 256570 |
| F0507 | 1 | Adapter, Conduit, PVC, Steel-to-PVC | 6" | 2 | 1001960 |
| Bend, Conduit, Steel, 90° 60” R | 6" | 1 | 1001958 | ||
| F0512 | 2 | Bend, Conduit, Fiberglass, SW 45° 24” R | 2" | 1 | 256322 |
| F0513 | 2 | Bend, Conduit, Fiberglass, SW 45° 24” R | 3" | 1 | 256330 |
| F0514 | 2 | Bend, Conduit, Fiberglass, HW 45° 48” R | 4" | 1 | 256348 |
| F0516 | 2 | Bend, Conduit, Fiberglass, HW 45° 60” R | 6" | 1 | 256356 |
| F0517 | 2 | Adapter, Conduit, PVC, Steel-to-PVC | 6" | 2 | 1001960 |
| Bend, Conduit, Steel, 45° 48” R | 6" | 1 | 1001959 | ||
| F0520 | 3 | Bend, Conduit, Fiberglass, SW 22-1/2° 24” R | 2" | 1 | 1001070 |
