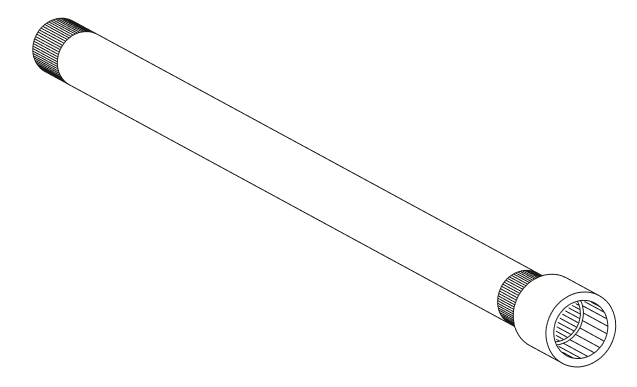

F0401-6 - Rigid Galvanized Steel Conduit
Revision 6
Oct 26, 2016
| Compatible Unit | Nominal Size | O.D. | Nominal I.D. | Wall Thickness | Weight Per 10' (lbs) | Qty | MID |
|---|---|---|---|---|---|---|---|
| F0401 | 1" | 1.315" | 1.063" | 0.126" | 15.3 | 1 | 250267 |
| F0402 | 2" | 2.375" | 2.083" | 0.146" | 33.2 | 1 | 250308 |
| F0403 | 3" | 3.500" | 3.090" | 0.205" | 68.3 | 1 | 250324 |
| F0404 | 4" | 4.500" | 4.050" | 0.225" | 97.2 | 1 | 250340 |
Note:
Rigid steel conduit is supplied in 10' sections with one coupling
